Cassette System

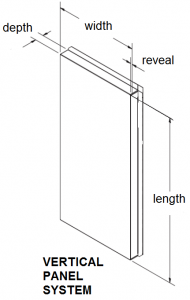

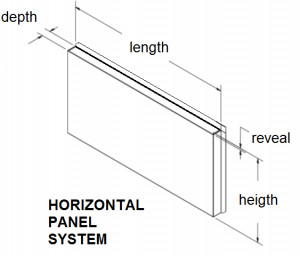

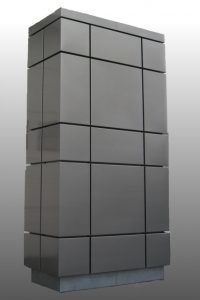

The cassette system is modular and allows for design versatility and the lightweight systems lends itself to installation in either vertical or horizontal applications. The grid size can be customized per project/order. The panel size and seams between the various panels can vary and be adjusted to the acquired. The cassette is made of solid zinc with a material thickness of 1.5 mm.

Benefits of this cassette system are a fast, easy and cost-effective assembly. The panels have a long service life and are maintenance-friendly. In principle they do not require periodic cleaning. The panels are prefab formed and available in multiple shapes and dimensions.

Standard cassette characteristics:

More than 2 columns? Scroll horizontally
Dimensions:32” x 120”
Max length:10’ - 0
Depth:1 - 3/8”
Reveal width:3/4”
On center:Varies
ShapesSquare
Rectangular
Perforated:Available
