Interlocking Panel
The system consists of profiled zinc sheets with a variable width size, typical coverage witha joint (reveal). The dimensions of the panels and joints are variable, as are the lengths of the panels. The characteristic of this panel is a tongue and groove systems with concealedfasteners. Through fastening is possible.

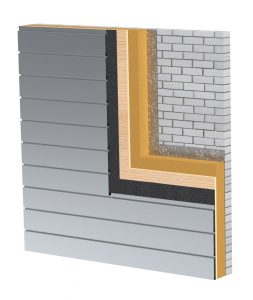

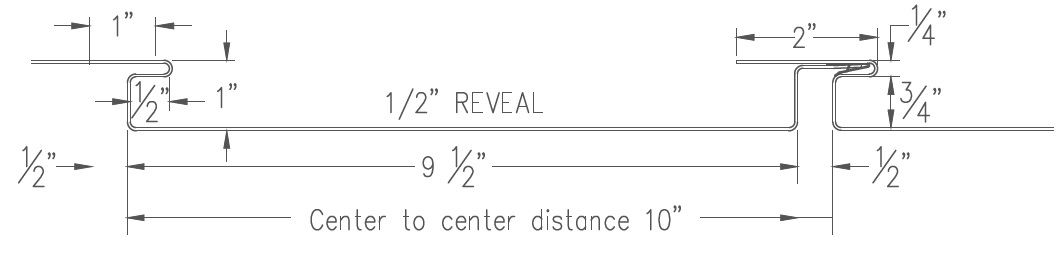

The Interlocking Panel system is suitable for façade cladding and can be installed bothvertically and horizontally or even a combination. Therefore the system offers architects freeway to implementing their designs for most building shapes to utilize this system. The special advantage of the reveal panel is the design freedom of face heights that canrange from 6″-13″ with a variable joint widths.
The panels are prefab formed and available in multiple shapes and dimensions.
